Rubber bonded Centerless grinding wheels
designed for grinding, roughing, semi-ﬁnishing and ﬁnishing operations

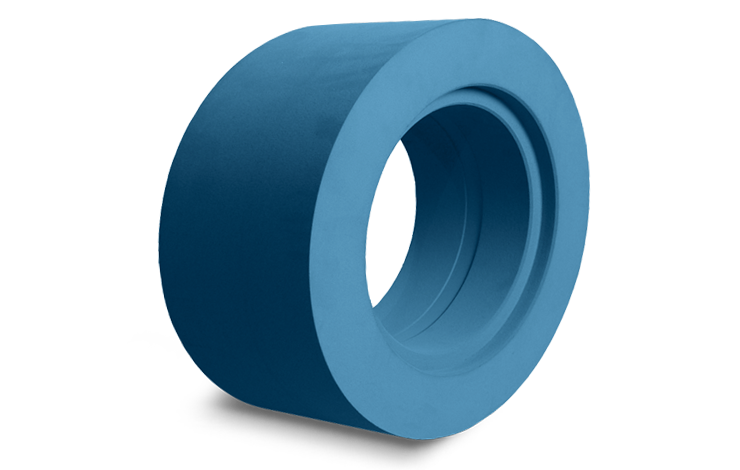

Special grinding wheel in rubber for roughing

Siapi Smartech Special Rubber Bonded wheels are very suitable for working on Centerless grinding machines and in particular for ROUGHING and SEMI FINISHING operations. They are able to remove up to 0.3 mm. and they allow to obtain a very good finishing degree compared to wheels produced with other binders. In particular, they eliminate any vibration due to "play" of the spindles in particular applications such as the roughing of conical rollers. This binder guarantees excellent roundness, and high hold of the diameter and shape of the pieces. The obtainable roughness ranges from 0.4 to 0.15 microns Ra.

RUBBER = LONG LIFE OF THE TOOL AND HIGH PRODUCTIVITY

The RUBBER, with binder functions, has excellent resilience and allows to obtain the almost self-dressing effect, as well as good finishing capacities thanks to the grain cushioned by the binder. VERY VERSATILE from the point of view of applications, the same type of grinding wheel allows to work on DIFFERENT MATERIALS such as treated and untreated steel, aluminum, hardened and non-hardened stainless steel, chrome, PVC, glass and ceramic coatings. Obviously, the obtainable performances vary from case to case.

Related Products

SELF DRESSING = HIGHER PRODUCTIVITY

A peculiar characteristic of this type of grinding wheel is the ability to become self-dressing in some applications or, in any case, to reduce the frequency of the diamond dressing compared to wheels produced with traditional binders.
This characteristic allows to reduce to a minimum the MACHINE STOPS and increase productivity.

WHEELS IN MULTIPLE GRAINS = REDUCTION OF THE PROCESSING TIMES

On some particular applications, it is possible to produce grinding wheels in multiple grits, allowing to obtain a good removal with a good finishing degree. This peculiarity translates into a REDUCTION in the number of passes with a consequent SAVING OF TIME, MACHINERY and RESOURCES.

SPECIAL BORDER = UNIFORM SURFACE ON THE PIECES

The grinding wheel can also be produced with a special integrated border; it is composed of a low abrasive mix with a finer particle size than that used in the remaining part of the wheel. This special technology allows the machine to be maintained PARALLEL without causing the optical SPIRAL on the piece. The main feature is that it does not produce any removal, but only guides the piece on the exit side, avoiding any vibrations of the same.

RUBBER = REPEATABILITY AND CONSTANCE OVER TIME

The high standard of the production cycle, guaranteed through a careful selection of the raw materials and the continuous checks during the process, allow a high repeatability in compliance with the strict construction tolerances.
Over the years, we have also developed different binders that better suit to each type of material to be worked.

TECHNICAL ASSISTANCE DURING THE TRIALS = QUICK EMPLOYMENT OF THE TOOL

In order to optimize the performance of the grinding wheels during the trial period, Siapi Smartech offers its customers the possibility of a TECHNICAL ASSISTANCE through the presence and cooperation of an operator with many years of experience in grinding.
